Size: G3/4"
Voltage:DC12V
Interface: Four exceptionally thread
Rated power:5W
Pressure: This is the micro-pressure valve (with pressure), issuitable for 0.02-0.8MPA pressure
Fluid: (0-100 ° C) water
Work: flat-rate system
Water flow characteristics (with pressure-type): 0.02Mpa> 1.5L / min; 0.10Mpa> 7L / min; 0.30Mpa> 12L / min; 0.80Mpa> 20L / min
Insulation: insulation resistance between conductors and non-conductor is greater than 100MΩ
Insulation class: E class insulation
Life: ≥50 thousand times (laboratory data) ≥30 million times (actually normal use)

Package Included:
1 X G3/4" DC12V Normally Close Water Solenoid Valve

Difference of the valve with and without Pressure:
If the water of outlets is sprayed then use the one with pressure (Work under 0.02~0.8Mpa )
If the water of outlets is small water flow then use the one without pressure (Work under 0~0.2pa )

Difference of normally closed and open one:
Normally closed: the solenoid valve have water when power on, and do not have water when power off
Normally open: the solenoid valve do not have water when power on, and have water when power off

Voltage Available:

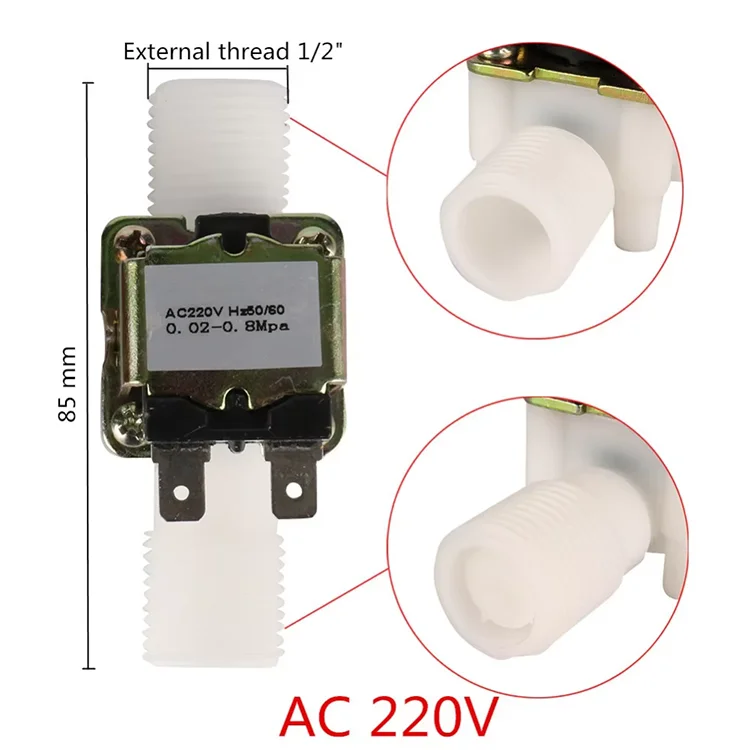

Normal Voltage: DC12V DC24V AC220V
Support Customize Voltage: DC6V AC12V AC24V AC110V DC36V AC36V DC48V AC48V
