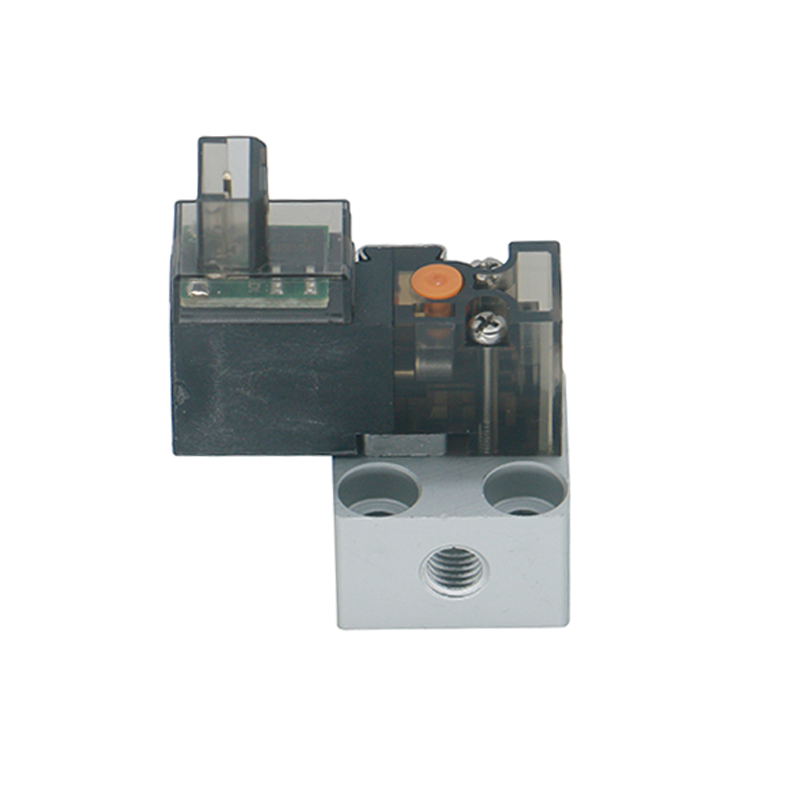

DC12V oxygen vibrating disc sorting high-frequency 10mm large flow micro solenoid valve
DC12V oxygen vibrating disc sorting high-frequency 10mm large flow micro solenoid valve
Category :
Solenoid valve
Model: 10MM series and 15MM series
Function: 3/2 N.C. ; 3/2 N.O. ; 2/2 N.C.
Body Material: Plastic
Orifice Size: φ0.75mm(P),/φ1.0mm(R)
Electrical Connector: Vertical type(L)/Horizontal type(M)/Direct line type(G)
Worling Medium: Filtered Air/Inert gases
Working Tmeperature: 5~60'C Degree
Working Pressure: 0.15~0.7MPa
Working Voltage: DC24V / DC12V / DC6V / DC3V; AC220V / AC110V(COULD SPECIAL PRODUCED)
Insulation: H Class
Service Life: > 50 million times
Duty Cycle: ED 100%
Degree of Pretection: IP65
Warranty: 1 YEAR
Response Time: Less Than 10s
* NOTE CE PASSED,COULD MARKED ON VALVE BODY*
